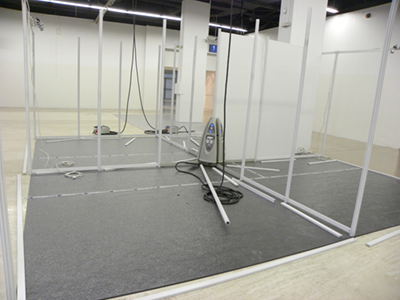

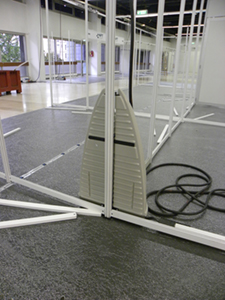

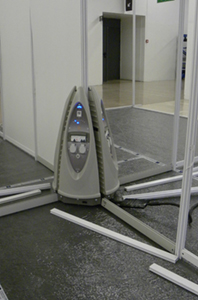

KELIPSE terminals, compatible with the most often-used modular stand structures, are integrated into the overall stand installation.
An adjustable system helps to adapt the beams to the structure's exact dimensions.

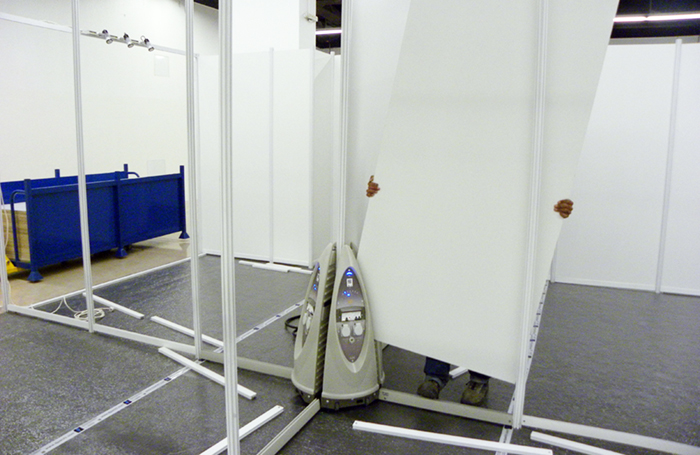

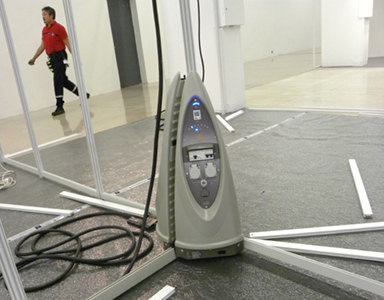

KELIPSE terminals, compatible with the most often-used modular stand structures, are integrated into the overall stand installation.
An adjustable system helps to adapt the beams to the structure's exact dimensions.

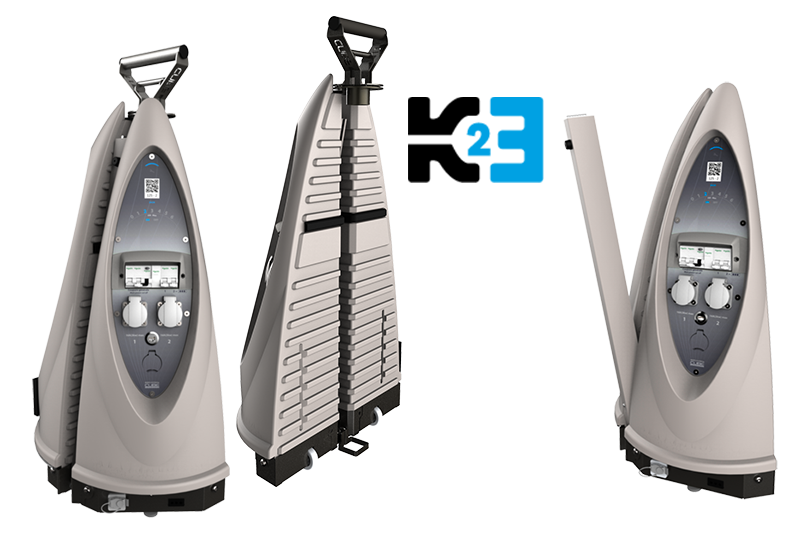

Features Kelipse 2
Product references
KELIPSE 2-32 and KELIPSE 2-63
2 additional equipments
/ CW = separate disconnection of the Wieland socket
/ N = integrated switch
Measure
Dimensions (LxWxH): 55 x 25 x 86 cm
Space requirement: 26 cm (quarter circle)
Weight: 15kg
Standards
Meets the electrical standards IEC / EN 60439-1; IEC60364-1 IEC / EN 60950-1
Meets the EMV 89/336 / CEE standard
Product references
KELIPSE 2-32 and KELIPSE 2-63
2 additional equipments
/ CW = separate disconnection of the Wieland socket
/ N = integrated switch
Measure
Dimensions (LxWxH): 55 x 25 x 86 cm
Space requirement: 26 cm (quarter circle)
Weight: 15kg
Standards
Meets the electrical standards IEC / EN 60439-1; IEC60364-1 IEC / EN 60950-1
Meets the EMV 89/336 / CEE standard

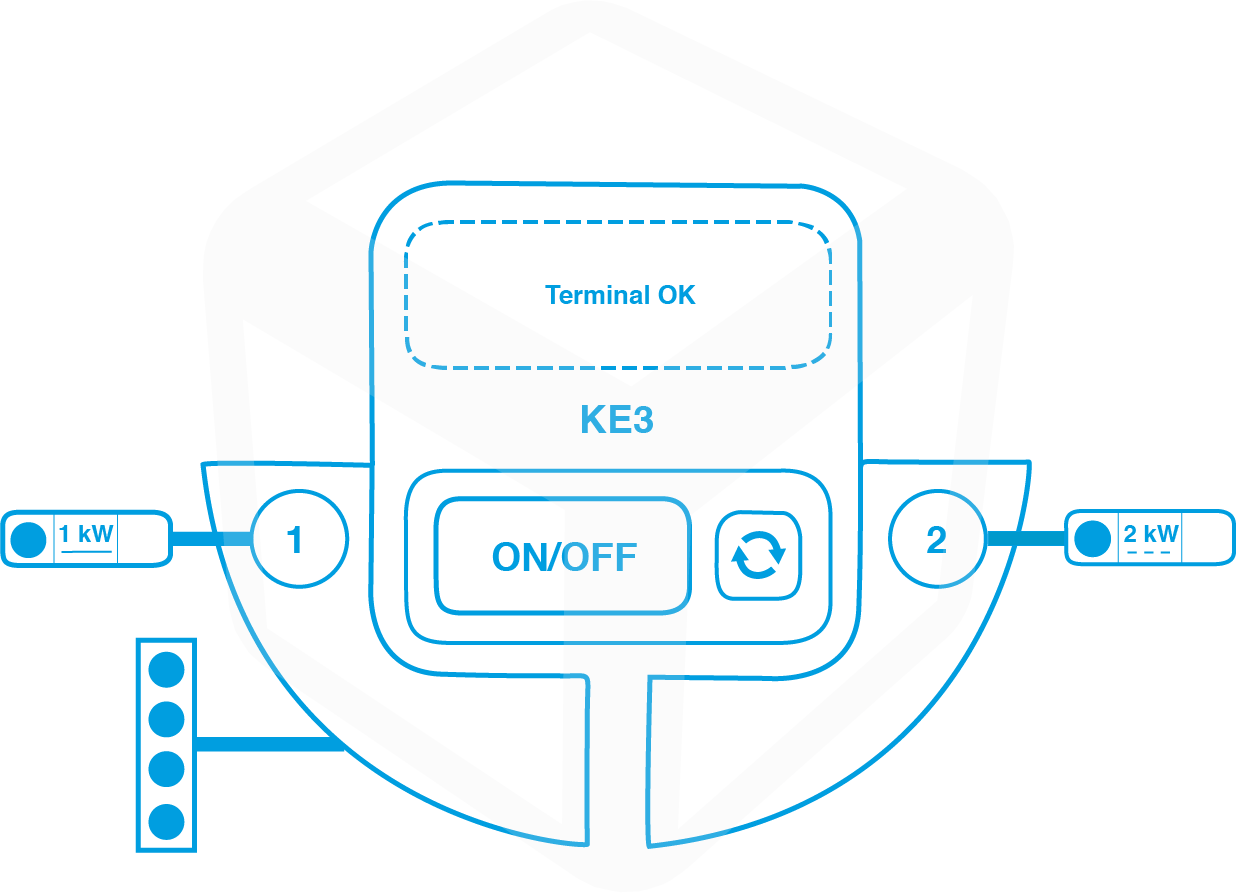

Control scheme for KELIPSE 2

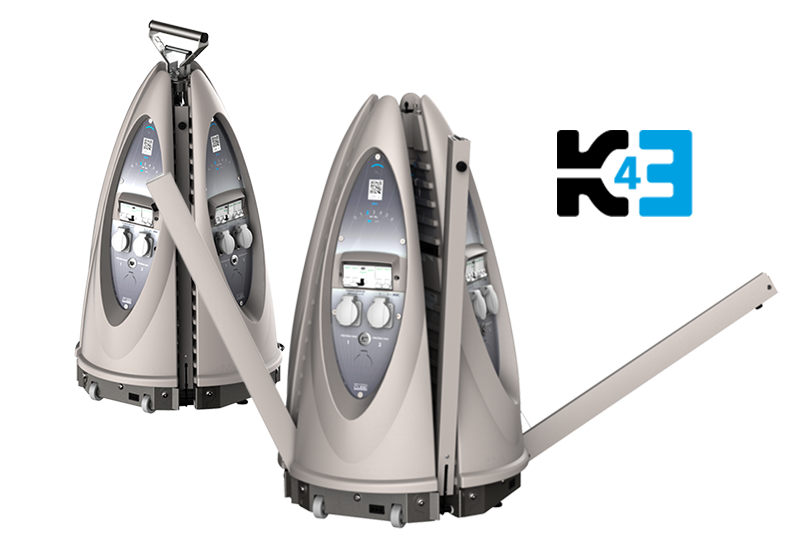

Features KELIPSE 4
Product references
KELIPSE 4-32 and KELIPSE 4-63
3 additional equipments
/ CW = separate disconnection of the Wieland socket
/ N = integrated switch
/CW/N = separate disconnection of the Wieland socket and integrated switch
Measure
Dimensions (L x H): 55 x 86 cm
Space requirement: 26 cm (quarter circle)
Weight: 15kg
Normen
Meets the electrical standards IEC / EN 60439-1; IEC60364-1 IEC / EN 60950-1
Meets the EMV 89/336 / CEE standard
Product references
KELIPSE 4-32 and KELIPSE 4-63
3 additional equipments
/ CW = separate disconnection of the Wieland socket
/ N = integrated switch
/CW/N = separate disconnection of the Wieland socket and integrated switch
Measure
Dimensions (L x H): 55 x 86 cm
Space requirement: 26 cm (quarter circle)
Weight: 15kg
Normen
Meets the electrical standards IEC / EN 60439-1; IEC60364-1 IEC / EN 60950-1
Meets the EMV 89/336 / CEE standard

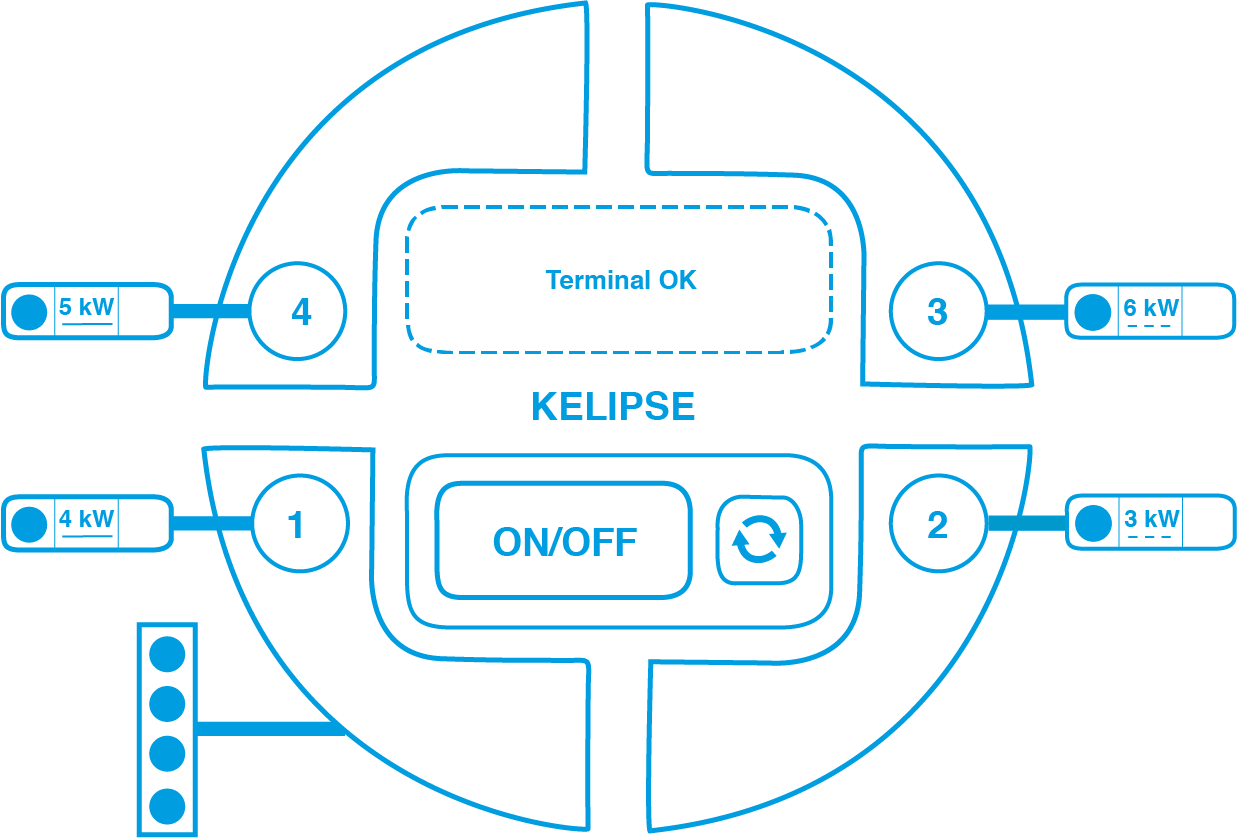

Control scheme for KELIPSE 4
KELIPSE THE VIDEO
32A VERSION
The KELIPSE 32A models (4 sides or 2 sides) should be connected to a maximum 32A three-phase electricity network, 3P+N+T.
They do not include a lockout device in compliance with the current standards (NFC-15-100, HD 384, IEC 60364). The electrician is authorised to disconnect the power supply (KCS or CEE32A) without shutting the power down first.
The 4-32 KELIPSE settings can be adjusted by 1 kW up to 6 kW on sides 1 and 2, powered by outlets 1 and 2
Sides 3 and 4 are powered by outlet 3 Both have 32A max.
As a result, KELIPSE 4-32 also allows the technician to adjust settings by 1 kW up to 6 kW on sides 3 and 4, but prevents this once the amount has reached a certain threshold depending on the type of upstream protection.
The KELIPSE 32A models (4 sides or 2 sides) should be connected to a maximum 32A three-phase electricity network, 3P+N+T.
They do not include a lockout device in compliance with the current standards (NFC-15-100, HD 384, IEC 60364). The electrician is authorised to disconnect the power supply (KCS or CEE32A) without shutting the power down first.
The 4-32 KELIPSE settings can be adjusted by 1 kW up to 6 kW on sides 1 and 2, powered by outlets 1 and 2
Sides 3 and 4 are powered by outlet 3 Both have 32A max.
As a result, KELIPSE 4-32 also allows the technician to adjust settings by 1 kW up to 6 kW on sides 3 and 4, but prevents this once the amount has reached a certain threshold depending on the type of upstream protection.
63A VERSION
The KELIPSE 63 versions (4 sides and 2 sides) should be connected to a maximum 63A three-phase electricity network, 3P+N+T.
They include a lockout device with pushbutton switches and MX coils. This means the electrician can cut off the power supply to all sides from one control point before carrying out any work.
The settings of the KELIPSE 4-63 with a 63A supply can be adjusted by 1 kW up to 6 kW on each side.
The KELIPSE 63 versions (4 sides and 2 sides) should be connected to a maximum 63A three-phase electricity network, 3P+N+T.
They include a lockout device with pushbutton switches and MX coils. This means the electrician can cut off the power supply to all sides from one control point before carrying out any work.
The settings of the KELIPSE 4-63 with a 63A supply can be adjusted by 1 kW up to 6 kW on each side.
