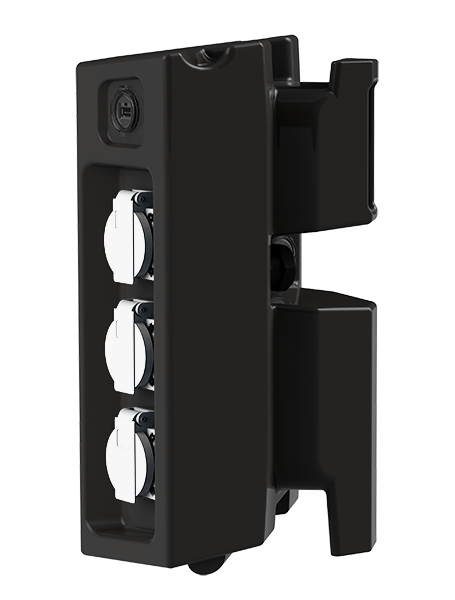

COMPACT M THE HIGH-TECH BOXES
The two COMPACT M models, with high-tech features and an original CUBE® design, offer a host of useful functions to your exhibitors in a minimum of space.
They are available in a 32A single-phase version for single-phase distribution up to 8kW or in a 16A three-phase version for single- and three-phase exhibitor distribution up to 12kW.
Always designed to save maximum space, they are set into the shell scheme stand structure (OCTANORM, SYMA, SODEM and DUO DISPLAY systems), using a secure and easy to install, connect and lock fastening system.
They are available in a 32A single-phase version for single-phase distribution up to 8kW or in a 16A three-phase version for single- and three-phase exhibitor distribution up to 12kW.
Always designed to save maximum space, they are set into the shell scheme stand structure (OCTANORM, SYMA, SODEM and DUO DISPLAY systems), using a secure and easy to install, connect and lock fastening system.
The two COMPACT M models, with high-tech features and an original CUBE® design, offer a host of useful functions to your exhibitors in a minimum of space.
They are available in a 32A single-phase version for single-phase distribution up to 8kW or in a 16A three-phase version for single- and three-phase exhibitor distribution up to 12kW.
Always designed to save maximum space, they are set into the shell scheme stand structure (OCTANORM, SYMA, SODEM and DUO DISPLAY systems), using a secure and easy to install, connect and lock fastening system.
They are available in a 32A single-phase version for single-phase distribution up to 8kW or in a 16A three-phase version for single- and three-phase exhibitor distribution up to 12kW.
Always designed to save maximum space, they are set into the shell scheme stand structure (OCTANORM, SYMA, SODEM and DUO DISPLAY systems), using a secure and easy to install, connect and lock fastening system.
GRID CONNECTION & PROTECTIONS
Power supply connection
PowerCON NEUTRIK© 32A single-phase base, flush-mounted at the back of the terminal. Inaccessible for the exhibitor thanks to the FIXWALL© system.
This disconnectable power supply system facilitates set-up, dismantling and storage operations.
Optional: Connection cable on M25 cable gland, 3m - 3G6, HO7RNF that can be rolled up on the back of the terminal.
Protections
RCCB, 40A / 2P / 30mA
2 circuit breakers 16A / 1P, C curve
Protective window for the whole
PowerCON NEUTRIK© 32A single-phase base, flush-mounted at the back of the terminal. Inaccessible for the exhibitor thanks to the FIXWALL© system.
This disconnectable power supply system facilitates set-up, dismantling and storage operations.
Optional: Connection cable on M25 cable gland, 3m - 3G6, HO7RNF that can be rolled up on the back of the terminal.
Protections
RCCB, 40A / 2P / 30mA
2 circuit breakers 16A / 1P, C curve
Protective window for the whole
Power supply connection
PowerCON NEUTRIK© 32A single-phase base, flush-mounted at the back of the terminal. Inaccessible for the exhibitor thanks to the FIXWALL© system.
This disconnectable power supply system facilitates set-up, dismantling and storage operations.
Optional: Connection cable on M25 cable gland, 3m - 3G6, HO7RNF that can be rolled up on the back of the terminal.
Protections
RCCB, 40A / 2P / 30mA
2 circuit breakers 16A / 1P, C curve
Protective window for the whole
PowerCON NEUTRIK© 32A single-phase base, flush-mounted at the back of the terminal. Inaccessible for the exhibitor thanks to the FIXWALL© system.
This disconnectable power supply system facilitates set-up, dismantling and storage operations.
Optional: Connection cable on M25 cable gland, 3m - 3G6, HO7RNF that can be rolled up on the back of the terminal.
Protections
RCCB, 40A / 2P / 30mA
2 circuit breakers 16A / 1P, C curve
Protective window for the whole

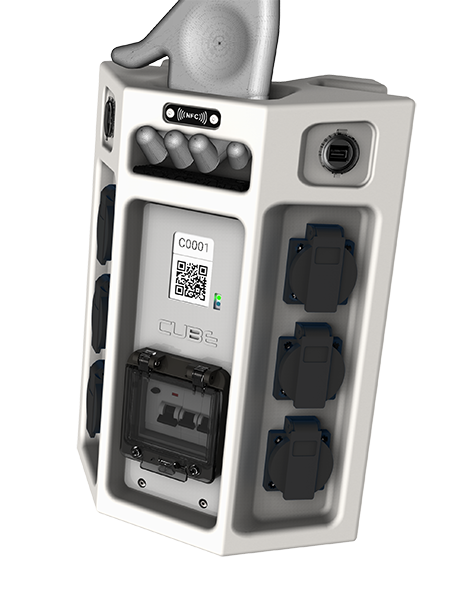

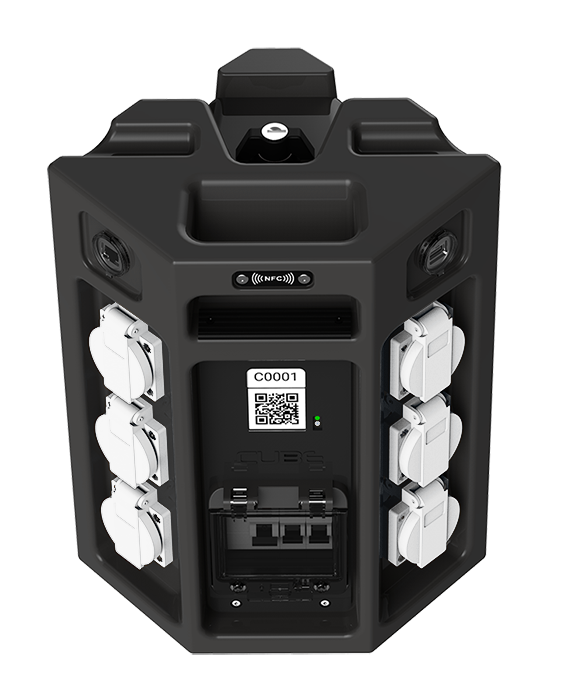

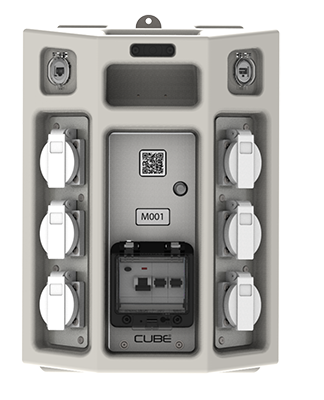

COMPACT M 32A SINGLE-PHASE
EXHIBITOR POWER SUPPLY
Standard connections
6 (2x3) 16A 1P+N+T, single-phase sockets
1 Wieland GSTi socket, 16A/3P
Integrated on the bottom of the box, it allows the connection of stand lighting without using a dedicated exhibitor socket.
1 USB socket for charging smartphones
Single USB A/2A, USB C/2A or double USB 2x2A socket on the front of the switchboard with protective cover.
Ethernet IN/OUT
Secure RJ45 connection supplied to the exhibitor by a simple connection between the IN on the back of the switchboard and the OUT on the front.
INDUCTION option
2A induction charger for charging smartphones housed in a compartment at the top of the box.
6 (2x3) 16A 1P+N+T, single-phase sockets
1 Wieland GSTi socket, 16A/3P
Integrated on the bottom of the box, it allows the connection of stand lighting without using a dedicated exhibitor socket.
1 USB socket for charging smartphones
Single USB A/2A, USB C/2A or double USB 2x2A socket on the front of the switchboard with protective cover.
Ethernet IN/OUT
Secure RJ45 connection supplied to the exhibitor by a simple connection between the IN on the back of the switchboard and the OUT on the front.
INDUCTION option
2A induction charger for charging smartphones housed in a compartment at the top of the box.
Standard connections
6 (2x3) 16A 1P+N+T, single-phase sockets
1 Wieland GSTi socket, 16A/3P
Integrated on the bottom of the box, it allows the connection of stand lighting without using a dedicated exhibitor socket.
1 USB socket for charging smartphones
Single USB A/2A, USB C/2A or double USB 2x2A socket on the front of the switchboard with protective cover.
Ethernet IN/OUT
Secure RJ45 connection supplied to the exhibitor by a simple connection between the IN on the back of the switchboard and the OUT on the front.
INDUCTION option
2A induction charger for charging smartphones housed in a compartment at the top of the box.
6 (2x3) 16A 1P+N+T, single-phase sockets
1 Wieland GSTi socket, 16A/3P
Integrated on the bottom of the box, it allows the connection of stand lighting without using a dedicated exhibitor socket.
1 USB socket for charging smartphones
Single USB A/2A, USB C/2A or double USB 2x2A socket on the front of the switchboard with protective cover.
Ethernet IN/OUT
Secure RJ45 connection supplied to the exhibitor by a simple connection between the IN on the back of the switchboard and the OUT on the front.
INDUCTION option
2A induction charger for charging smartphones housed in a compartment at the top of the box.

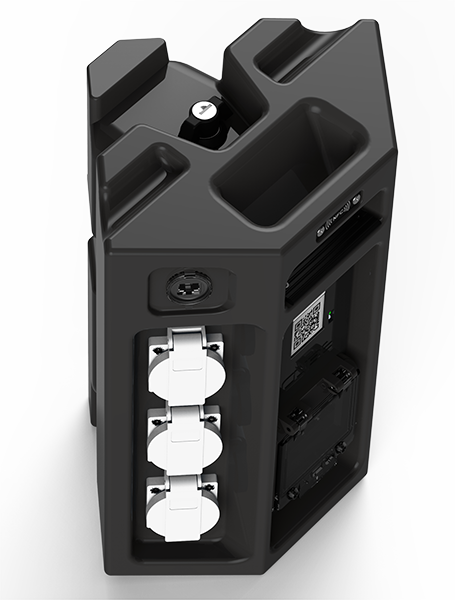

COMPACT M 16A THREEPHASES
GRID CONNECTION, PROTECTIONS & POWER SUPPLY
Power grid connection
Via a cable gland at the rear of the switchboard and a 3-metre 5G2.5 cable.
Protections
1 RCBO 16A/30mA/3P+E protects all exhibitor sockets.
Single-phase distribution
6 (3x2) 16A 1P+N+T sockets
1 Wieland GST18i3 or ST18i3 socket, 16A/3P
Integrated on the bottom of the distribution box, it allows the connection of stand lighting without using a dedicated exhibitor socket.
Three-phase distribution
1 Wieland 16A/5P 230V/400V GSTi socket, integrated on the bottom of the distribution box. A cable fitted with a P17 female, 16A can be supplied as an option.
Available as an option:
1 USB, A type or C type socket for charging smartphones
Single USB 2A or double USB 2x2A socket on the front of the box with protective cover.
Ethernet IN/OUT
The RJ45 connection supplied to the exhibitor is secured by a simple connection between the IN on the back of the box and the OUT on the front.
Induction charger
2A induction charger for charging smartphones housed in a compartment at the top of the box.
Via a cable gland at the rear of the switchboard and a 3-metre 5G2.5 cable.
Protections
1 RCBO 16A/30mA/3P+E protects all exhibitor sockets.
Single-phase distribution
6 (3x2) 16A 1P+N+T sockets
1 Wieland GST18i3 or ST18i3 socket, 16A/3P
Integrated on the bottom of the distribution box, it allows the connection of stand lighting without using a dedicated exhibitor socket.
Three-phase distribution
1 Wieland 16A/5P 230V/400V GSTi socket, integrated on the bottom of the distribution box. A cable fitted with a P17 female, 16A can be supplied as an option.
Available as an option:
1 USB, A type or C type socket for charging smartphones
Single USB 2A or double USB 2x2A socket on the front of the box with protective cover.
Ethernet IN/OUT
The RJ45 connection supplied to the exhibitor is secured by a simple connection between the IN on the back of the box and the OUT on the front.
Induction charger
2A induction charger for charging smartphones housed in a compartment at the top of the box.
Power grid connection
Via a cable gland at the rear of the switchboard and a 3-metre 5G2.5 cable.
Protections
1 RCBO 16A/30mA/3P+E protects all exhibitor sockets.
Single-phase distribution
6 (3x2) 16A 1P+N+T sockets
1 Wieland GST18i3 or ST18i3 socket, 16A/3P
Integrated on the bottom of the distribution box, it allows the connection of stand lighting without using a dedicated exhibitor socket.
Three-phase distribution
1 Wieland 16A/5P 230V/400V GSTi socket, integrated on the bottom of the distribution box. A cable fitted with a P17 female, 16A can be supplied as an option.
Available as an option:
1 USB, A type or C type socket for charging smartphones
Single USB 2A or double USB 2x2A socket on the front of the box with protective cover.
Ethernet IN/OUT
The RJ45 connection supplied to the exhibitor is secured by a simple connection between the IN on the back of the box and the OUT on the front.
Induction charger
2A induction charger for charging smartphones housed in a compartment at the top of the box.
Via a cable gland at the rear of the switchboard and a 3-metre 5G2.5 cable.
Protections
1 RCBO 16A/30mA/3P+E protects all exhibitor sockets.
Single-phase distribution
6 (3x2) 16A 1P+N+T sockets
1 Wieland GST18i3 or ST18i3 socket, 16A/3P
Integrated on the bottom of the distribution box, it allows the connection of stand lighting without using a dedicated exhibitor socket.
Three-phase distribution
1 Wieland 16A/5P 230V/400V GSTi socket, integrated on the bottom of the distribution box. A cable fitted with a P17 female, 16A can be supplied as an option.
Available as an option:
1 USB, A type or C type socket for charging smartphones
Single USB 2A or double USB 2x2A socket on the front of the box with protective cover.
Ethernet IN/OUT
The RJ45 connection supplied to the exhibitor is secured by a simple connection between the IN on the back of the box and the OUT on the front.
Induction charger
2A induction charger for charging smartphones housed in a compartment at the top of the box.
THE 'BUILT-IN' DISTRIBUTION BOX

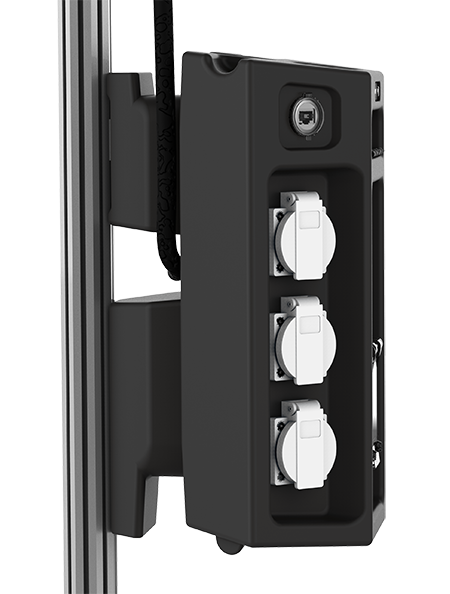

The COMPACT power distribution box is fixed directly in the shell scheme stand structure.
Designed by CUBE, this FIXWALL© system is compatible with SODEM, OCTANORM, SYMA and DUO DISPLAY structures.
Adaptation to other systems is possible on request.

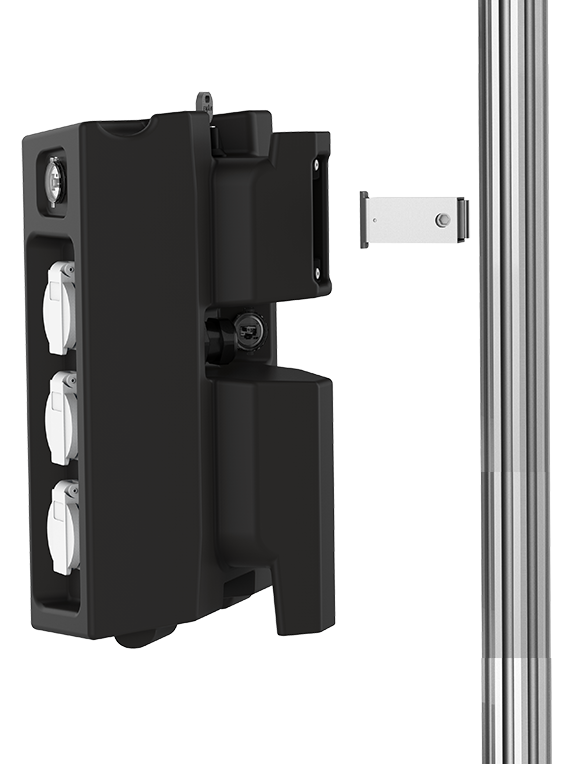

Universal fixing
A stainless steel support allows secure hanging on 'traditional' carpentry wall partitions or any other suppor
Designed by CUBE, this FIXWALL© system is compatible with SODEM, OCTANORM, SYMA and DUO DISPLAY structures.
Adaptation to other systems is possible on request.
Universal fixing
A stainless steel support allows secure hanging on 'traditional' carpentry wall partitions or any other suppor
The COMPACT power distribution box is fixed directly in the shell scheme stand structure.
Designed by CUBE, this FIXWALL© system is compatible with SODEM, OCTANORM, SYMA and DUO DISPLAY structures.
Adaptation to other systems is possible on request.
Universal fixing
A stainless steel support allows secure hanging on 'traditional' carpentry wall partitions or any other suppor
Designed by CUBE, this FIXWALL© system is compatible with SODEM, OCTANORM, SYMA and DUO DISPLAY structures.
Adaptation to other systems is possible on request.
Universal fixing
A stainless steel support allows secure hanging on 'traditional' carpentry wall partitions or any other suppor
100% SAFE, ANTI-THEFT FASTENING

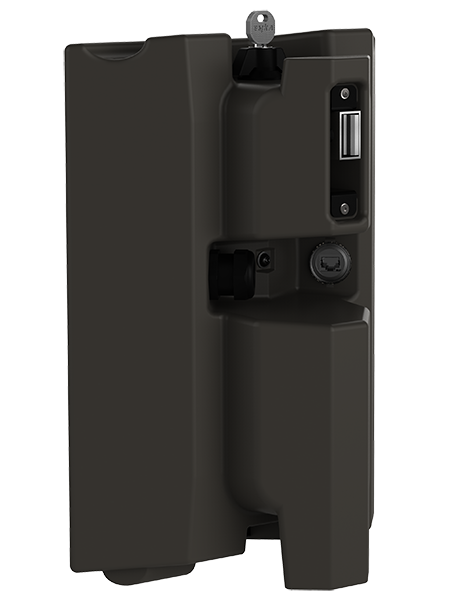

The hook is secured by a key lock (FIXWALL© system).
This fixing system also protects the power supplies, which are inaccessible to exhibitors once the box is set-up.
The hook is secured by a key lock (FIXWALL© system).
This fixing system also protects the power supplies, which are inaccessible to exhibitors once the box is set-up.
STORAGE & HANDLING

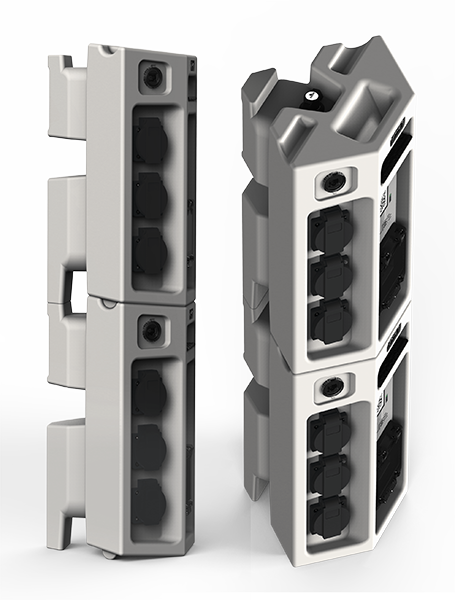

The power distribution boxes are easy to stack thanks to the notches that ensure the stability of the stack.
They can therefore be stored and transported on pallets.
Very light (<4 kg), 2 boxes can be carried by a single technician at the same time.
The integrated handle is dedicated to this purpose.
The power distribution boxes are easy to stack thanks to the notches that ensure the stability of the stack.
They can therefore be stored and transported on pallets.
Very light (<4 kg), 2 boxes can be carried by a single technician at the same time.
The integrated handle is dedicated to this purpose.
