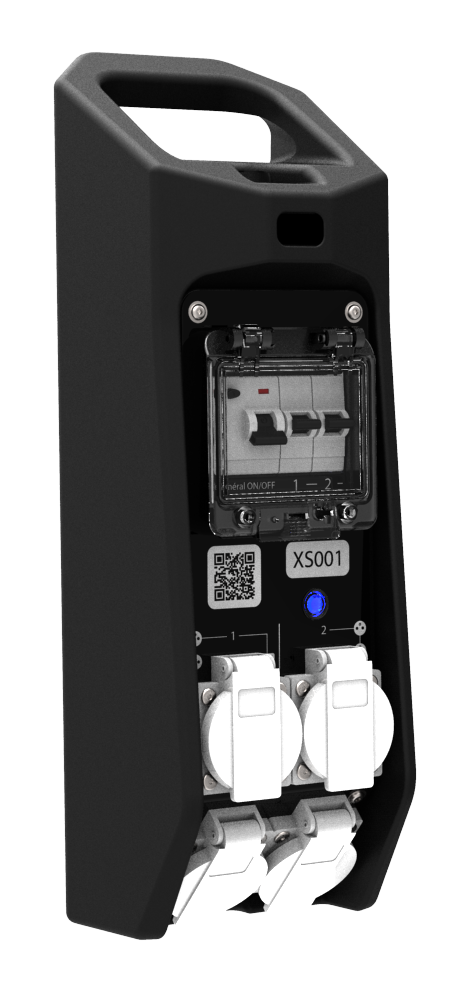

COMPACT XS THE 'EXTRA SMALL' BOX
ACCESS COMPACT XS packs everything you need to satisfy your exhibitors into a minimum volume.
It can distribute up to 4kW (16A single-phase), up to 4.5 kW (18A single-phase, with one 24-hour socket) or up to 8kW (32A single-phase).

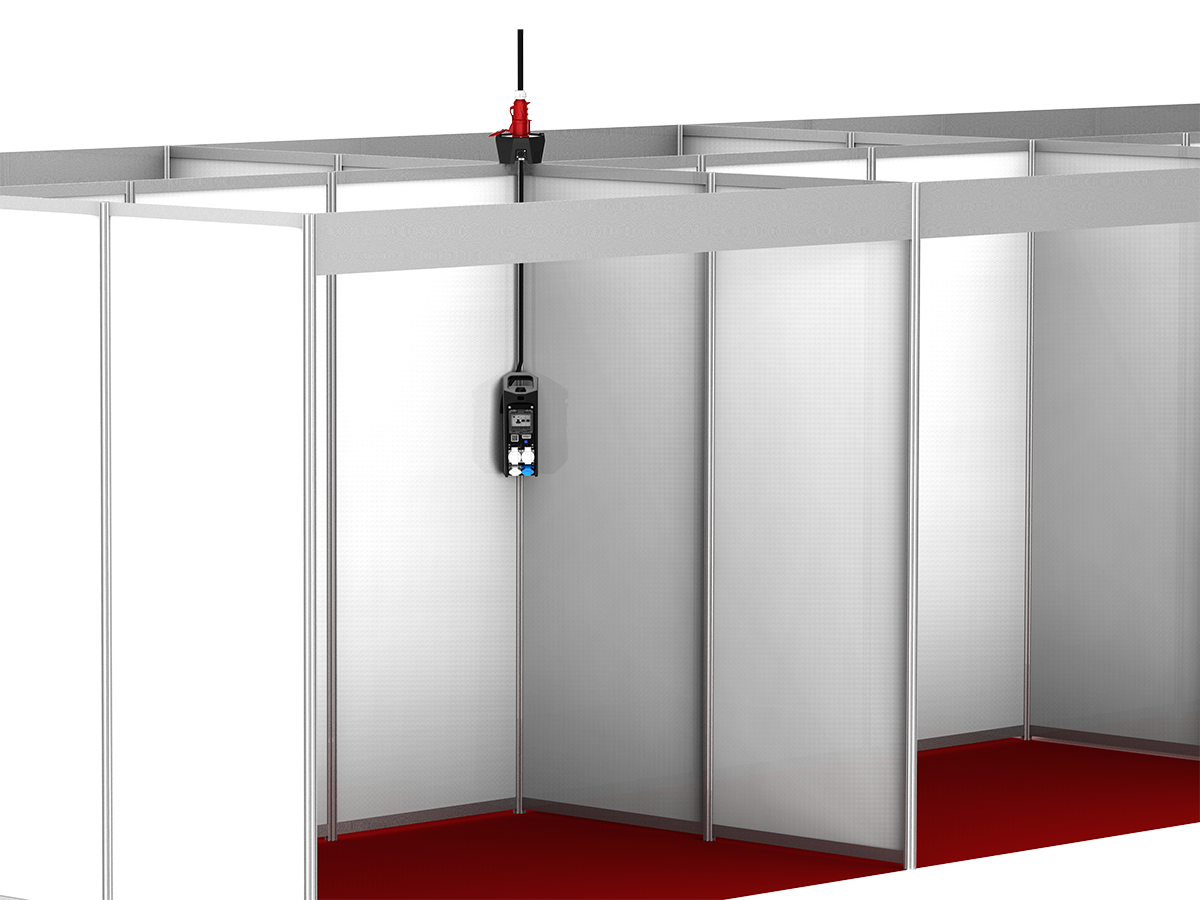

Designed on the same principle as the COMPACT power distribution box, directly integrated into the structure of the shell scheme stand (SODEM, OCTANORM, SYMA and DUO DISPLAY systems) using a secure fixing system, it can be installed, connected and safely locked with considerable timesaving.
It can distribute up to 4kW (16A single-phase), up to 4.5 kW (18A single-phase, with one 24-hour socket) or up to 8kW (32A single-phase).
Designed on the same principle as the COMPACT power distribution box, directly integrated into the structure of the shell scheme stand (SODEM, OCTANORM, SYMA and DUO DISPLAY systems) using a secure fixing system, it can be installed, connected and safely locked with considerable timesaving.
ACCESS COMPACT XS packs everything you need to satisfy your exhibitors into a minimum volume.
It can distribute up to 4kW (16A single-phase), up to 4.5 kW (18A single-phase, with one 24-hour socket) or up to 8kW (32A single-phase).
Designed on the same principle as the COMPACT power distribution box, directly integrated into the structure of the shell scheme stand (SODEM, OCTANORM, SYMA and DUO DISPLAY systems) using a secure fixing system, it can be installed, connected and safely locked with considerable timesaving.
It can distribute up to 4kW (16A single-phase), up to 4.5 kW (18A single-phase, with one 24-hour socket) or up to 8kW (32A single-phase).
Designed on the same principle as the COMPACT power distribution box, directly integrated into the structure of the shell scheme stand (SODEM, OCTANORM, SYMA and DUO DISPLAY systems) using a secure fixing system, it can be installed, connected and safely locked with considerable timesaving.

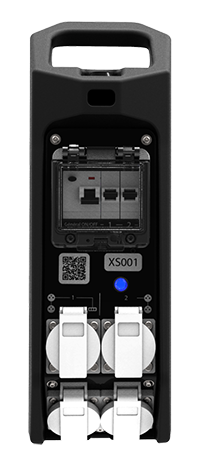

ELECTRICAL POWER SUPPLY

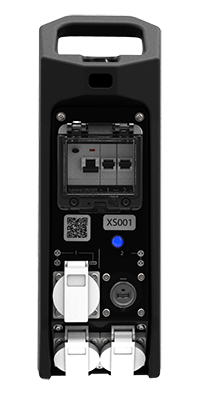

Main switch and socket protection
16A model
1 RCCB 25A/30mA/2P Icn 6kA
1 circuit breaker 16A/1P
18A model
1 RCCB 25A/30mA/2P 6kA
1 circuit breaker 16A/1P + 1 circuit breaker 2A/1P
32A model
1 RCCB 40A/30mA/2P 6kA
2 circuit breakers 16A/1P
Signalling
Detection of the ON or OFF position of the RCCB.
Exhibitor power supply
4 x 16A, 1P+N+E, single-phase sockets.
Type to be defined for each country.

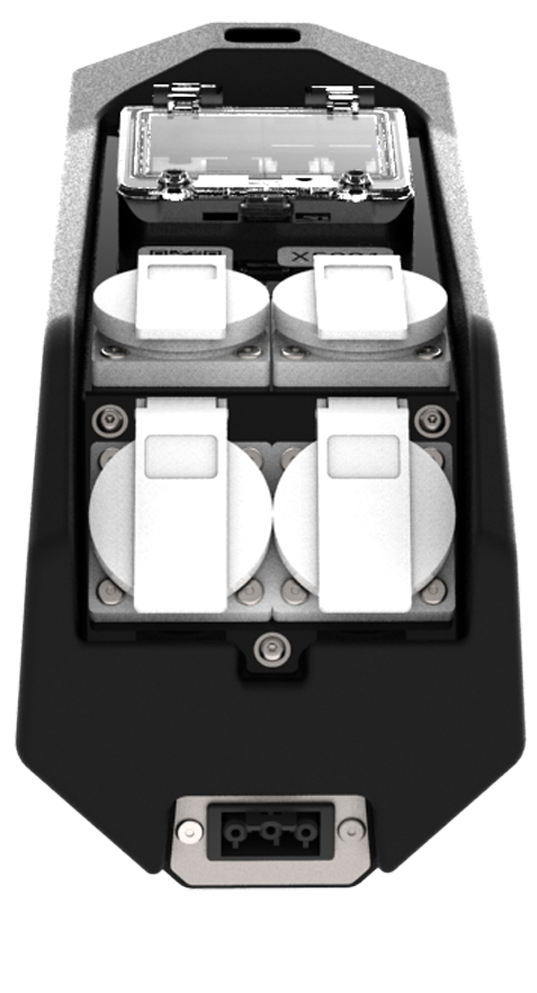

Wieland GSTi, 16A/3P socket integrated on the bottom of the box for connection of stand lighting.
Controlled switch off
16A and 18A models: single by 25A/1P contactor (in the 18A model, the 24/24h socket is not disconnected)
32A model: single by 25A/2P contactor
Metering
Integrated MID meter (possibility of invoicing consumption to exhibitor or organiser).
Optional connections
Single USB 2A (type A or C) socket on the front of the box with protective cover (replaces a 16A socket).
16A model
1 RCCB 25A/30mA/2P Icn 6kA
1 circuit breaker 16A/1P
18A model
1 RCCB 25A/30mA/2P 6kA
1 circuit breaker 16A/1P + 1 circuit breaker 2A/1P
32A model
1 RCCB 40A/30mA/2P 6kA
2 circuit breakers 16A/1P
Signalling
Detection of the ON or OFF position of the RCCB.
Exhibitor power supply
4 x 16A, 1P+N+E, single-phase sockets.
Type to be defined for each country.
Wieland GSTi, 16A/3P socket integrated on the bottom of the box for connection of stand lighting.
Controlled switch off
16A and 18A models: single by 25A/1P contactor (in the 18A model, the 24/24h socket is not disconnected)
32A model: single by 25A/2P contactor
Metering
Integrated MID meter (possibility of invoicing consumption to exhibitor or organiser).
Optional connections
Single USB 2A (type A or C) socket on the front of the box with protective cover (replaces a 16A socket).
Main switch and socket protection
16A model
1 RCCB 25A/30mA/2P Icn 6kA
1 circuit breaker 16A/1P
18A model
1 RCCB 25A/30mA/2P 6kA
1 circuit breaker 16A/1P + 1 circuit breaker 2A/1P
32A model
1 RCCB 40A/30mA/2P 6kA
2 circuit breakers 16A/1P
Signalling
Detection of the ON or OFF position of the RCCB.
Exhibitor power supply
4 x 16A, 1P+N+E, single-phase sockets.
Type to be defined for each country.
Wieland GSTi, 16A/3P socket integrated on the bottom of the box for connection of stand lighting.
Controlled switch off
16A and 18A models: single by 25A/1P contactor (in the 18A model, the 24/24h socket is not disconnected)
32A model: single by 25A/2P contactor
Metering
Integrated MID meter (possibility of invoicing consumption to exhibitor or organiser).
Optional connections
Single USB 2A (type A or C) socket on the front of the box with protective cover (replaces a 16A socket).
16A model
1 RCCB 25A/30mA/2P Icn 6kA
1 circuit breaker 16A/1P
18A model
1 RCCB 25A/30mA/2P 6kA
1 circuit breaker 16A/1P + 1 circuit breaker 2A/1P
32A model
1 RCCB 40A/30mA/2P 6kA
2 circuit breakers 16A/1P
Signalling
Detection of the ON or OFF position of the RCCB.
Exhibitor power supply
4 x 16A, 1P+N+E, single-phase sockets.
Type to be defined for each country.
Wieland GSTi, 16A/3P socket integrated on the bottom of the box for connection of stand lighting.
Controlled switch off
16A and 18A models: single by 25A/1P contactor (in the 18A model, the 24/24h socket is not disconnected)
32A model: single by 25A/2P contactor
Metering
Integrated MID meter (possibility of invoicing consumption to exhibitor or organiser).
Optional connections
Single USB 2A (type A or C) socket on the front of the box with protective cover (replaces a 16A socket).
THE 'BUILT-IN' TERMINAL

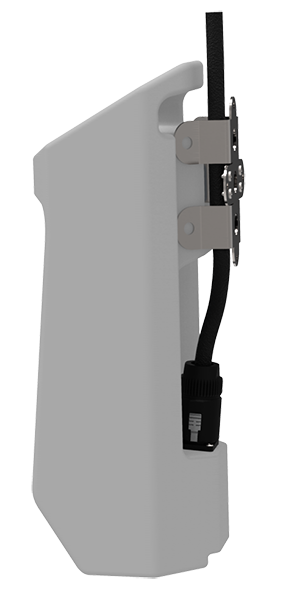

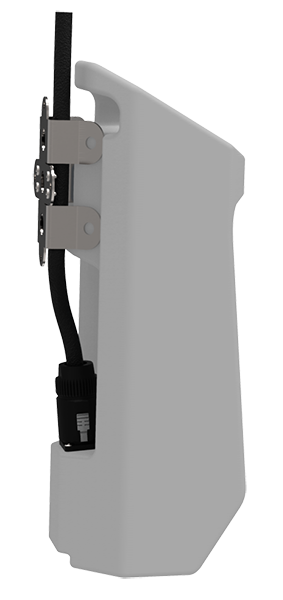

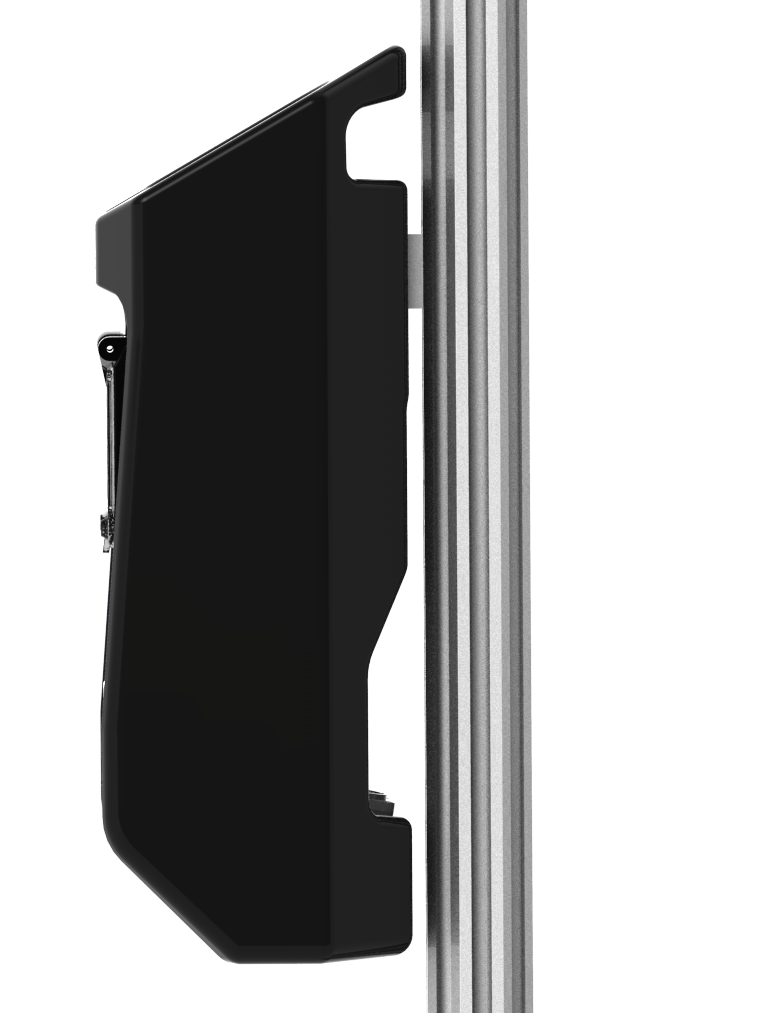

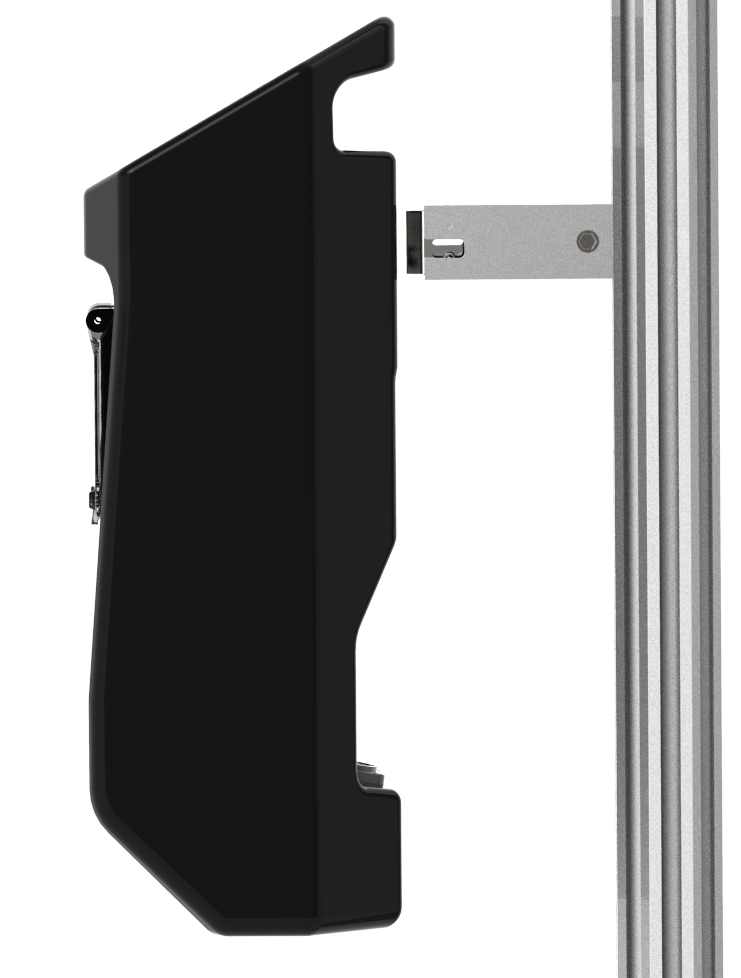

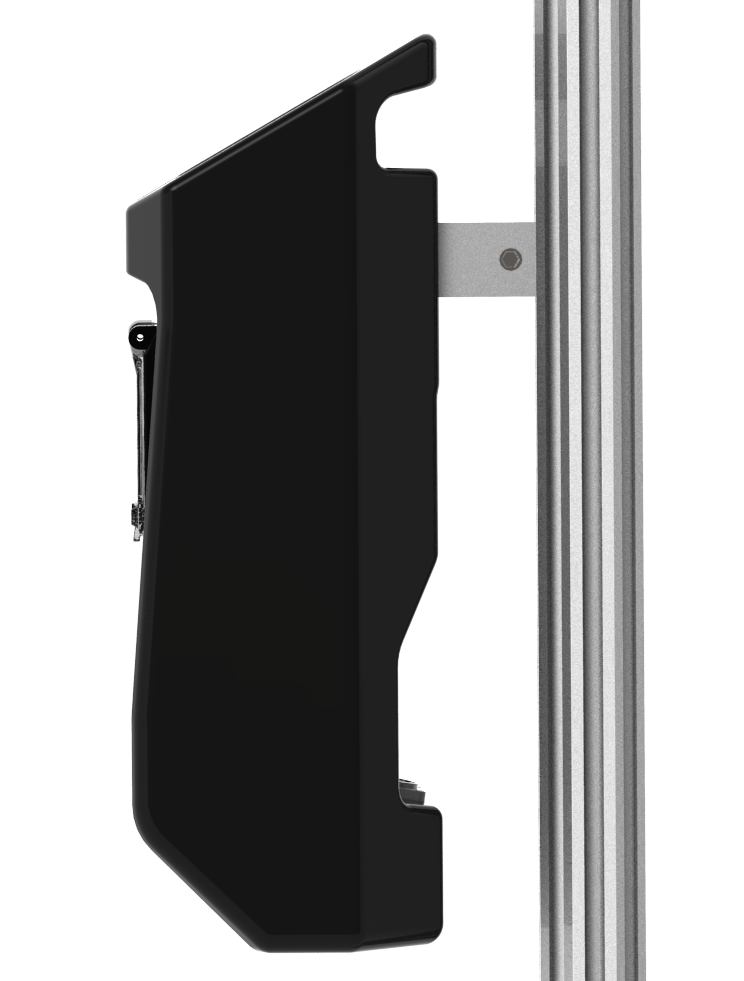

COMPACT XS is fixed directly in the structure of the shell scheme stand.
Designed by CUBE, the FIXWALL© system is compatible with SODEM, OCTANORM, SYMA and DUO DISPLAY systems.
Adaptation to other systems is possible on request.
Universal fixing
A stainless steel plate allows secure hanging on 'traditional' carpentry partitions or any other suppo
Designed by CUBE, the FIXWALL© system is compatible with SODEM, OCTANORM, SYMA and DUO DISPLAY systems.
Adaptation to other systems is possible on request.
Universal fixing
A stainless steel plate allows secure hanging on 'traditional' carpentry partitions or any other suppo
COMPACT XS is fixed directly in the structure of the shell scheme stand.
Designed by CUBE, the FIXWALL© system is compatible with SODEM, OCTANORM, SYMA and DUO DISPLAY systems.
Adaptation to other systems is possible on request.
Universal fixing
A stainless steel plate allows secure hanging on 'traditional' carpentry partitions or any other suppo
Designed by CUBE, the FIXWALL© system is compatible with SODEM, OCTANORM, SYMA and DUO DISPLAY systems.
Adaptation to other systems is possible on request.
Universal fixing
A stainless steel plate allows secure hanging on 'traditional' carpentry partitions or any other suppo
KEY ASSETS FIT FOR THE EXHIBITION
'Anti-theft' function

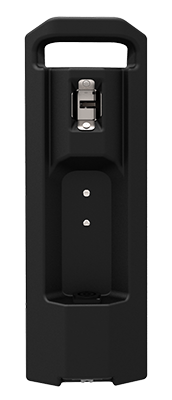

The hook is secured by a key lock (FIXWALL© system).
This fixing system also protects the power supply, which is inaccessible to exhibitors once the distribution box is set-up.
Gripping and handling
An integrated handle makes it easy to grip during set-up and dismantling.
Sturdiness and weight (<3 kg)
The rotomolded polyethylene shell of the terminal offers high mechanical resistance for reduced weight.
Display
The operating and voltage presence LED indicates the status of the box.
The hook is secured by a key lock (FIXWALL© system).
This fixing system also protects the power supply, which is inaccessible to exhibitors once the distribution box is set-up.
Gripping and handling
An integrated handle makes it easy to grip during set-up and dismantling.
Sturdiness and weight (<3 kg)
The rotomolded polyethylene shell of the terminal offers high mechanical resistance for reduced weight.
Display
The operating and voltage presence LED indicates the status of the box.
'Anti-theft' function
The hook is secured by a key lock (FIXWALL© system).
This fixing system also protects the power supply, which is inaccessible to exhibitors once the distribution box is set-up.
Gripping and handling
An integrated handle makes it easy to grip during set-up and dismantling.
Sturdiness and weight (<3 kg)
The rotomolded polyethylene shell of the terminal offers high mechanical resistance for reduced weight.
Display
The operating and voltage presence LED indicates the status of the box.
The hook is secured by a key lock (FIXWALL© system).
This fixing system also protects the power supply, which is inaccessible to exhibitors once the distribution box is set-up.
Gripping and handling
An integrated handle makes it easy to grip during set-up and dismantling.
Sturdiness and weight (<3 kg)
The rotomolded polyethylene shell of the terminal offers high mechanical resistance for reduced weight.
Display
The operating and voltage presence LED indicates the status of the box.
TECHNICAL FEATURES
Dimensions
H 40cm x W 14cm x D 15cm
H 15.75 in x W 5.52 in x D 5,90 in
Weight
<3kg
< 6,614 lb
Enclosure
One-piece roto-moulded, micro-blasted and flamed.
Polyethylene (PE), 100% recyclable, made in France.
Communication
Bluetooth, Wi-Fi.
Integrated NFC tag and QR-Code.
H 40cm x W 14cm x D 15cm
H 15.75 in x W 5.52 in x D 5,90 in
Weight
<3kg
< 6,614 lb
Enclosure
One-piece roto-moulded, micro-blasted and flamed.
Polyethylene (PE), 100% recyclable, made in France.
Communication
Bluetooth, Wi-Fi.
Integrated NFC tag and QR-Code.
Dimensions
H 40cm x W 14cm x D 15cm
H 15.75 in x W 5.52 in x D 5,90 in
Weight
<3kg
< 6,614 lb
Enclosure
One-piece roto-moulded, micro-blasted and flamed.
Polyethylene (PE), 100% recyclable, made in France.
Communication
Bluetooth, Wi-Fi.
Integrated NFC tag and QR-Code.
H 40cm x W 14cm x D 15cm
H 15.75 in x W 5.52 in x D 5,90 in
Weight
<3kg
< 6,614 lb
Enclosure
One-piece roto-moulded, micro-blasted and flamed.
Polyethylene (PE), 100% recyclable, made in France.
Communication
Bluetooth, Wi-Fi.
Integrated NFC tag and QR-Code.
